Electronic vision aids

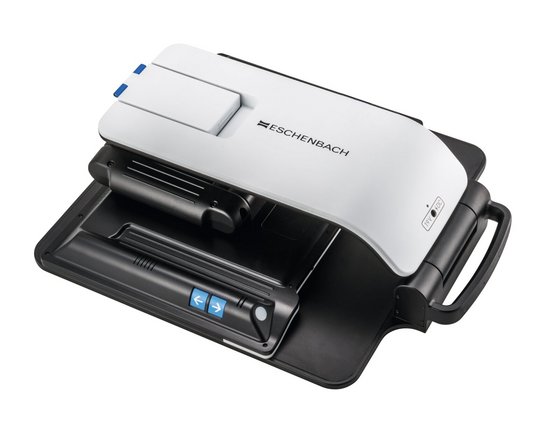

vario DIGITAL 16 FHD
Art. Nr. 16591
Product Benefits
- Best image quality
- Very large field of view and true colour image reproduction
- Portable use thanks to the user-friendly folding mechanism and ergonomic handle
- Simple to use
- Intuitively positioned operating buttons and roatary knobs
- Simple menu navigation
- Smooth zoom in even steps
- Homogeneous and shadow-free illumination is provided by LEDs in the base arm and on the underside of the monitor.
- High level of mechanical stability to protect against vibrations
Product Properties
- High-definition camera with optical digital zoom
- Large magnification range from 1.3x to 45x
- Non-reflective LCD TFT screen in 15.6” format
- Pin sharp, true colour image in full HD resolution
- Fast autofocus ensures perfect reading comfort at all times
- The autofocus can be switched off to make it even easier to write under the camera
- Large field of view of 265 mm
- Powerful LED lights
- Optional orientation guides with a reading line or mask
- Speedy orientation thanks to an overview mode
- User-friendly menu with adjustment options to suit your individual needs
- Clear voice output for all menu stages (can be switched off)
- 14 contrast-enhanced false colour modes
- Photo function with option of saving photos on inserted SD card (can be switched off)
- Stable, robust and ergonomic
- The tilting camera makes it easier to carry out handicraft work and enables you to read the upper area of the reading material more easily
- The camera has a cover to protect against dust and dirt
- Users can carry out software updates and resets themselves
- USB Type C port for data transmission
- Weight: 6.3 kg
- Included in delivery: USB Type C cable, 8 GB SD card, universal charging device for worldwide use, microfibre case
Product Accessories
Eschenbach Optik regularly publishes an update of the software for the vario DIGITAL FHD. To receive the latest version, please register your vario DIGITAL FHD at "Product Registration".
Technical data
| Accessories (included) | USB cable (type USB-C), SD card (pre-loaded), microfibre cloth, operating instructions (multilingual), mains charger with country adapter (EU, GB, US, AU) |
| Additional accessories | comfort-carry bag |
| Supported task | Reading, Writing, freehanded working |
| Installation | positioned, standing up |
| Ergonomic | Screen height adjustment, Screen tilt adjustment |
| Magnification | 1.3 – 45 x |
| Display Technology | TFT-LCD, reflexionsfrei |
| Screen size/diagonal in cm | 39.6 cm |
| Screen size/diagonal in Inch | 15.6 " |
| Screen resolution | 1920 x 1080px |
| Screen lightness | yes (multistage) |
| Lighting image tray/support | several LEDs (glare-free), brightness adjustable (per LED group), lighting can be switched off (per LED group) |
| Camera - type | AF - Autofocus (manual focusing) |
| Camera - positioning | natural orientation, central position (glare-free) |
| User input | selection dial, shift paddle, menu button separately, function key, button for reading line/reading line |
| User support | high-contrast function keys, tactile function keys, large icons, high-contrast symbols, confirmation tones, multilingual, charging status indicator (LED), charging status indicator (screen icon), orientation aids on the housing, positioning aids on the housing, folding mechanism with snap-in function |
| Menu languages | DE, EN, SO, IT, ES |
| Display modes | true colours, white/black, black/white, yellow/black, black/yellow, yellow/blue, blue/yellow, green/black, black/green, white/red, red/white, violet/black, black/violet, orange/black, black/orange |
| Dimensions | 46 x 37.8 x 13.2 cm |
| Weight | 6.3 kg |
| Reading guideline | reading line & reading line |
| Live image from external source | no |
| Live image output | no |
| Mirror function | no |
| Remote Control | no |
| Show date/time | yes (format selectable) |
| Image recording | yes (with function key) |
| Image view | photo gallery function, PC (via USB port), PC (via SD card) |
| Extended image view | adjustable magnification, adjustable display mode/contrast, DLS - dynamic line scrolling in the picture |
| Image resolution | 1920 x 1080 px |
| Supported file formats | jpg |
| Image Memory/Storage | SD-Speicherkarte SDHC (bis 32GB) |
| Total storage space/capacity (in scope of delivery) | 8 GB |
| Power supply | power supply (external) |
| Power supply charging device | In: 100-240VAC 50/60Hz 1.5A max, Out: 19VDC 3.42A |
| Operating temperature | 10 – 40 °C |
| Charging port | Rund-Hohlstecker |
| Port for data transmission to PC | USB-C |
| Video image output | no |
| Video Image Input | no |
| Warranty (Product) | 2 years |
| Warranty (Battery) | 6 months |
