Electronic vision aids
visolux DIGITAL HD
Art. Nr. 16521
Product Benefits
- HD camera for high contrast, detailed photos
- Large magnification range from 2x to 22x (connected to HD TV, e.g. 40“, magnification 12x to 125x)
- Generous depth of field for variable viewing distances

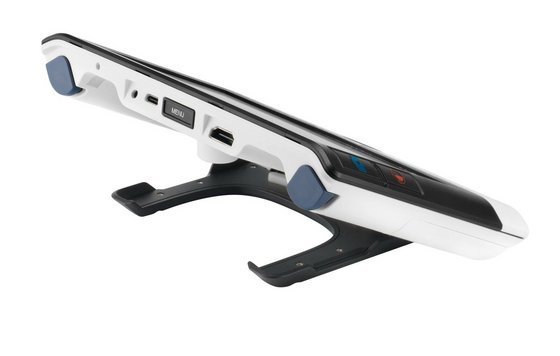

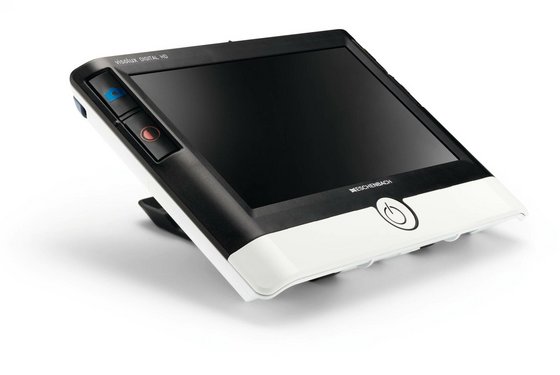

- Stand with ergonomic tilted angle
- Non-reflective 7" display,16:9
- Large field of view of 70 mm
- Dynamic Line Scrolling (DLS), the line area on the display is moved by the touch of a button

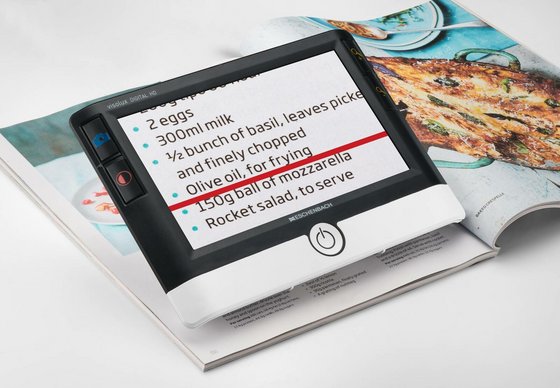

- Optional orientation markers (reading line or “blind”)
- Additional tactile positioning and orientation markers on the housing

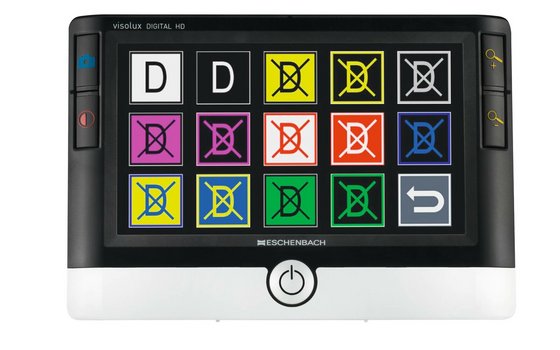

- Viewing modes in true colour and up to 14 contrast-enhanced false colour modes
- Photo function with option of saving photos on inserted SD card

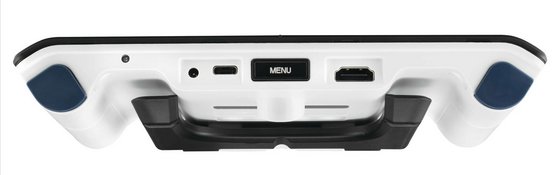

- HDMI port for transmitting live images onto televisions
- USB port, Type C port for transmitting images onto a computer (PC and Mac)
- Operating time: 3.5 h
- Weight: 460 g
- Included in delivery: HDMI cable, USB Type C cable, 4 GB SD card, universal charging device for worldwide use, lanyard, hard foam case
Product Properties
- Comfortable reading position due to ergonomic tilted angle
- Improved orientation on the reading material due to several tactile markers on the housing and a centrally positioned camera, as well as an optional reading line

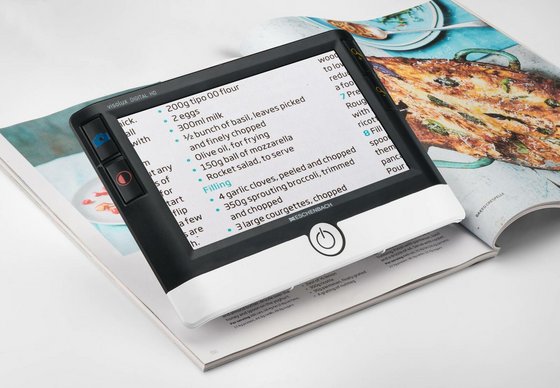

- Accommodates an entire newspaper column
- Dynamic Line Scrolling (DLS) means that even with high magnification levels orientation is not impaired and there is no need to move the reading device across the reading material
- Weighing in at just 460g, visolux DIGITAL is the ideal solution for when you’re on the move or at home
- Photo function with option of saving photos on inserted SD card
- Large range of false colour combinations

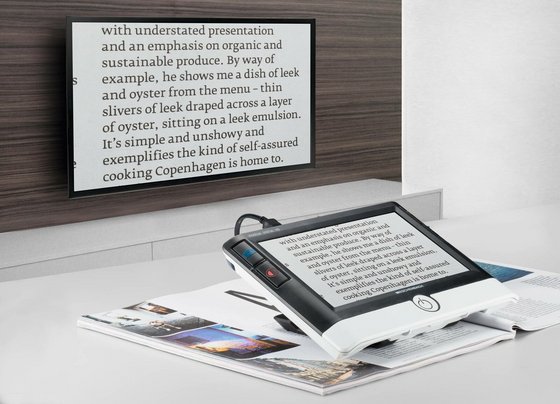

- Can also be used on the TV screen as screen-reading device via HDMI
Product Accessories
Eschenbach Optik regularly publishes an update of the software for the visolux DIGITAL HD. To receive the latest version, please register your visolux DIGITAL HD at "Product Registration".
Technical data
| Accessories (included) | Integrated battery, USB cable (type USB-C), HDMI cable (type A), SD card (pre-loaded), premium hard foam case, lanyard, microfibre cloth, operating instructions (multilingual), mains charger with country adapter (EU, GB, US, AU) |
| Additional accessories | Foldable stand for increasing the distance away, comfort-carry bag, silicon bumper |
| Supported task | Reading, Writing, mobile-proximity, freehanded working (with optional accessories) |
| Installation | folded, hand-held |
| Ergonomic | integrated stand, installation base (optional), to wear hung over |
| Magnification | 2 – 22 x |
| Field of view/Visual field/Field of vision (horizontal) | 67 mm |
| Display Technology | TFT-LCD, reflexionsfrei |
| Screen size/diagonal in cm | 17.9 cm |
| Screen size/diagonal in Inch | 7 " |
| Screen resolution | 1024 x 600px |
| Screen lightness | yes (multistage) |

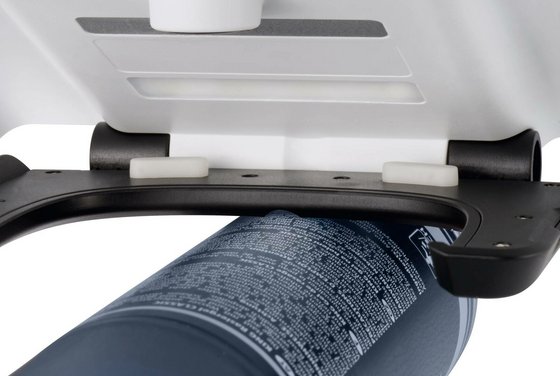

| Lighting image tray/support | several LEDs (glare-free), brightness adjustable (per LED), lighting can be switched off (per LED) |
| Camera - type | SF/DOF fixed focus |
| Camera - positioning | natural orientation, central position (glare-free) |
| User input | function key, shift paddle, menu button separately |
| User support | high-contrast function keys, tactile function keys, large icons, high-contrast symbols, confirmation tones, charging status indicator (LED), charging status indicator (screen icon), orientation aids on the housing, positioning aids on the housing |
| Display modes | true colours, white/black, black/white, yellow/black, black/yellow, yellow/blue, blue/yellow, green/black, black/green, white/red, red/white, violet/black, black/violet, blue/black, black/grey |
| Dimensions | 13.8 x 20.1 x 2.9 cm |
| Weight | 460 g |
| Reading guideline | reading line & reading line |
| DLS - Dynamic Line Scrolling | Yes |
| Live image from external source | no |
| Live image output | yes (HDMI Out) |
| Mirror function | no |
| Remote Control | no |
| Show date/time | yes (format selectable) |
| Image recording | yes (with function key) |
| Image view | photo gallery function, PC (via USB port), PC (via SD card), external display (via HDMI-Out) |
| Extended image view | adjustable magnification, adjustable display mode/contrast, DLS - dynamic line scrolling in the picture, live image transmission on external screen |
| Image resolution | 1920 x 1080 px |
| Supported file formats | jpg |
| Image Memory/Storage | SD-Speicherkarte SDHC (bis 32GB) |
| Total storage space/capacity (in scope of delivery) | 8 GB |
| Power supply | battery (integrated) |
| Installed battery | lones de litio |
| Operating Time (Battery)/Battery run time | 3.6 h |
| Charging time | 3 h |
| Power supply charging device | In: 100-240VAC 50/60Hz 0.6A max, Out: 9VDC 2.5A |
| Operating temperature | 10 – 40 °C |
| Charging port | Rund-Hohlstecker |
| Port for data transmission to PC | USB-C |
| Video image output | HDMI Typ A |
| Video Image Input | no |
| Warranty (Product) | 2 years |
| Warranty (Battery) | 6 months |
Materials
| manual_visolux_DIGITAL_HD.pdf | 3.8 MB |
