Headband and clip-on magnifiers

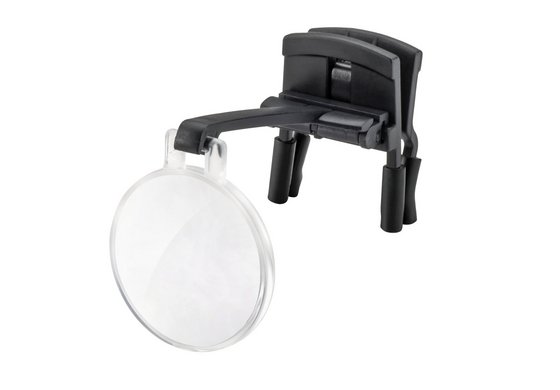

laboCLIP
Product Benefits
- The laboCLIP system can be easily attached to the spectacle frame.
- The laboCLIP leaves both hands free for working.
- Comfortable working distance even with a high level of magnification.
- Ideal not just for work tasks but also for leisure and craft activities.
Product Properties
- Used with distance spectacles to achieve optimum image quality.
- Lenses easily interchangeable.
- Planoconvex or aspheric PXM® lightweight lens for a distortion-free image with edge-to-edge sharpness.
- Lens sizes: monocular Ø 40 mm, binocular 74.5 x 22.5 mm.
- Lightweight.
- Lens clamp made from glass fibre reinforced plastic.
- Supplied with protective box.
- Optoform equipement available.
Product Accessories
Lenses, available separately
These lenses are also available separately under the following item numbers:
| Item | Lens | Magnification | Working dist. approx. |
| 16455 | binocular | 1.7 x 2.5 dpt | 400 mm |
| 16451 | binocular | 2.0 x 2.5 dpt | 250 mm* |
| 16452 | binocular | 2.5 x 5.0 dpt | 180 mm |
| 16453 | binocular | 3.0 x 7.75 dpt | 130 mm |
| 16454 | monocular | 4.0 x 16.0 dpt | 55 mm |
| 16457 | monocular | 7.0 x 28.0 dpt | 32 mm |
Materials
| manual_laboCLIP.pdf | 1.2 MB |
Variants
| Name | product code | Type of use/Application type | Magnification | Dioptre | Working distance | |
|---|---|---|---|---|---|---|
| laboCLIP | 164617 | binocular | 1.7 x | 2.5 dpt | 400 mm | |
| laboCLIP | 164620 | binocular | 2 x | 2.5 dpt | 250 mm | |
| laboCLIP | 164625 | binocular | 2.5 x | 5 dpt | 180 mm | |
| laboCLIP | 164630 | binocular | 3 x | 7.75 dpt | 130 mm | |
| laboCLIP | 164640 | monocular | 4 x | 16 dpt | 55 mm | |
| laboCLIP | 164670 | monocular | 7 x | 28 dpt | 32 mm |
