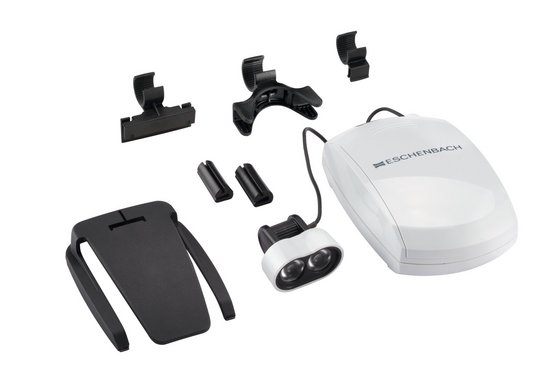

headlight LED

Art. Nr. 16042
headlight LED

Product Benefits

  • The light can be tilted vertically into the required position
  • Shadow-free and flicker-free illumination
  • Battery housing can be comfortably carried on the belt or in the shirt pocket
  • Low energy consumption as the light is optimised for use
    with rechargeable batteries

Product Properties

  • Small, lightweight and compact LED light• Light can be concentrated at a specific working distance by means of CPC optics (Compound Parabolic Concentrator)
  • Light is focused in a precise and glare-free manner
  • Power supply via handy, compact battery housing and cable
  • Flexible cable with additional adapter for attaching to eyewear temple
  • Virtually constant illumination throughout the entire lighting period
  • Illumination strength: approx. 3,200 Ix in 250 mm, 1,200 Ix in 400 mm
  • Illumination period: approx. 8 hours in normal mode, approx. 14 hours in eco mode
  • Hard foam case included
  • Lamp housing: Dimensions: 32 x 20 x 34 mm, Tilting range: vertical
  • Battery housing: Dimensions: 90 x 55 x 29 mm (without clip), 1m cable length

Materials

manual_headlight LED.pdf18.6 MB
